LimeNET BTS 5G SA
Below is a list of hardware and software parts that make up a “standard” LimeNET basestation (BTS) 5G standalone (SA) package. For specific part parameter(s), please contact Lime Microsystems separately.

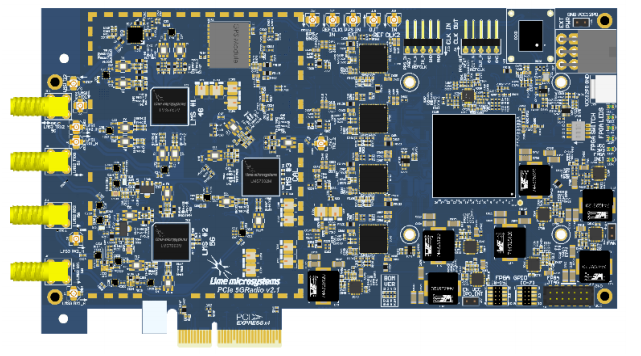

Software Defined Radio (SDR) with integrated front end – LimeNET is built on LimeSDR software-defined radio technology to deliver an app-enabled network solution covering any standard from IoT to 5G. Use of Lime’s SDR platform provides the most flexible radio hardware solution that enables numerous applications from IoT to 5G and smallcell configurations and services. It could be used to create on-demand network solutions where services could be easily offered for any Telco centric services. LimeNET comes pre-equipped with a flexible front-end module that provides filtering and amplification.
| RF Chipset | 3x Lime Microsystems LMS7002M FPRF |
| RF LO frequency1 | 30MHz – 3.8GHz |
| RF channels | 2x2 MIMO for 5G, 2x2 MIMO for 4G, 2x RX for spectrum monitoring and 2x TX for calibrations |
| RF bandwidth |
4G: up to 40MHz 5G: up to 100MHz |
| Default supported bands2 |
4G: B1, B3, B7 or B28 5G: n48, n783 |
| FPGA family | Xilinx Artix7, XC7A200T |
| PCIe generation | Gen 2, x4, 2000MB/s |
| Clock oscillator | VCOCXO, VCTCXO, CDCM6208 |
| Location services | Galileo, Glonass, GPS, Beidu |
Note
• 1Continous coverage.
• 2Other bands possible by request.
• 3Subset of 3.4-3.6GHz supported by default.
|
CPU1,2 |
AMD, Ryzen 7 5700G, 8C/16T or Ryzen 9 5900X, 12C/24T, 4.60GHz |
|
Motherboard1 |
|
|
RAM2 |
16GB, DDR4, 3600MHz (up to 128GB) |
|
Storage1,2 |
500GB SATA SSD |
|
Cooling1 |
Liquid/air combination |
|

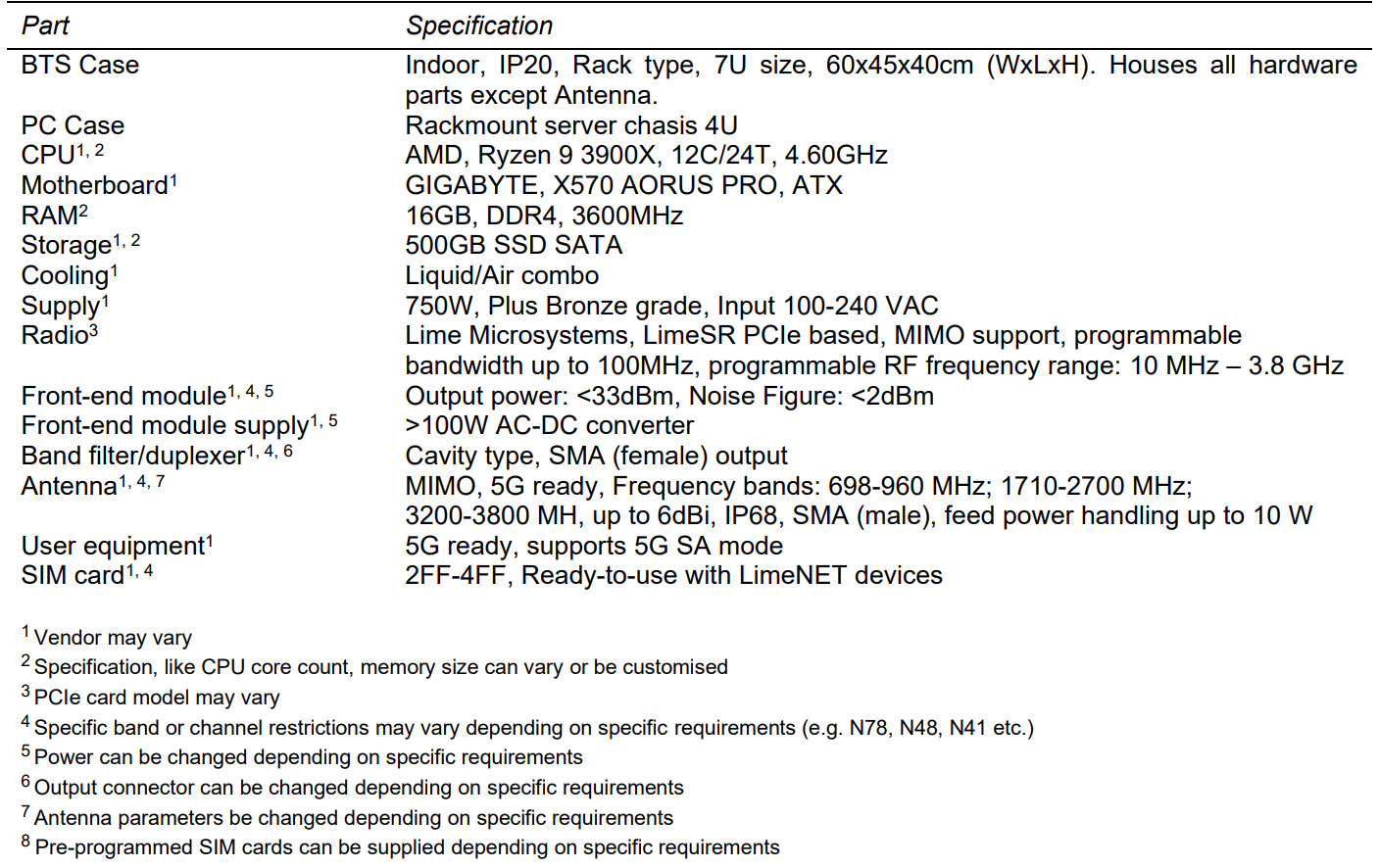

x86 subsystem case |
4U rackmount server chassis |
|
LimeNET system case |
Indoor, IP20, Rack type, 7U size, 60x45x40cm (WxLxH). Houses all hardware parts except Antenna. |
Note
- 1Vendor may vary.
- 2Specification may be customised.
|
Front-end module1,2,3 |
Output power: <33dBm, Noise Figure: <2dBm, ACPR: >45dB4 |
|
Front-end module supply1,3 |
>100W AC-DC converter |
|
Band filter/duplexer1,2,5 |
Cavity type, SMA (female) output |
|
Antenna1,2,6 |
MIMO, 5G ready, Frequency bands: 698-960MHz; 1710- 2700MHz; 3200-3800MHz, up to 6dBi, IP68, SMA (male), feed power handling up to 10W |
|
User test equipment1 |
5G ready, supports 5G SA mode |
|
SIM card1,7 |
2FF-4FF, Ready-to-use with LimeNET devices |
Note
- 1Vendor may vary.
- 2Specific band or channel restrictions may vary depending on specific requirements (e.g. N78, N48, N41 etc.)
- 3Power can be changed depending on specific requirements.
- 4At maximum output power, LTE test waveform, 20MHz, PAPR 10dB.
- 5Output connector can be changed depending on specific requirements.
- 6Antenna parameters be changed depending on specific requirements.
- 7Pre-programmed SIM cards can be supplied depending on specific requirements.
|
Module1 |
4G: EM7690 Cat-20 LTE-Advanced Pro Module |
|
5G: EM9191 5G NR Sub-6 GHz Module |
|
|
Data rate |
4G: Peak Download Rate 2Gb/s; Peak Upload Rate 211Mb/s |
|
5G: Peak Download Rate 4.5Gb/s; Peak Upload Rate 660Mb/s |
|
|
Supported bands |
4G: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
|
5G: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
|
|
Antenna1,2,3 |
MIMO, 5G ready, Frequency bands: 698-960MHz; 1710- 2700MHz; 3200-3800MHz, up to 6dBi, IP68, SMA (male), feed power handling up to 10W |
Note
- 1Vendor may vary.
- 2Specific band or channel restrictions may vary depending on specific requirements (e.g. N78, N48, N41 etc.)
- 3Antenna parameters can be changed to meet specific requirements.
|

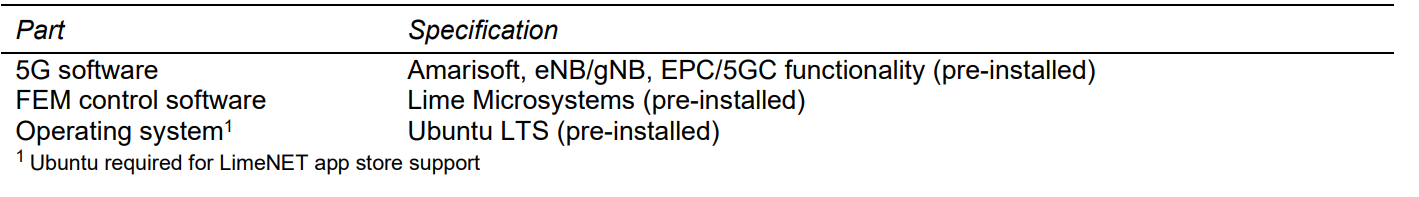

4G/5G stack |
Amarisoft: eNB/gNB, EPC/5GC functionality (pre-installed) |
|
Front-end module control |
Lime Microsystems: gain, power control; automatic output power level limitation; temperature and forward, reverse power information; SWR, over temperature, over power warnings (pre-installed) |
|
Operating system1 |
Ubuntu LTS (pre-installed) |
Note
- 1Ubuntu is required for LimeNET app store support.
